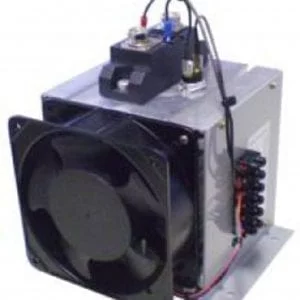

150 amp @ 480VAC (max) single pole solid state relay, 4-32VDC input with heat sink and fan by Novus - SSR-1P-150A-480V-NDP3

$247.00

150 amp @ 480VAC (max) single pole solid state relay, 4-32VDC input with heat sink and fan.

Usually ships in 6-8 weeks

SKU: SSR-1P-150A-480V-NDP3 Categories: ,

Description

150 amp @ 480VAC (max) single pole solid state relay, 4-32VDC input with heat sink and fan
  • Volts: 480VAC 1 Phase Max (can be operated at anything lower)
  • Amps: 150 Amps Max (can be operated at anything lower)
  • Firing: Zero Cross
  • Load Type: Resistive and Inductive
  • Input Signal: Between 4 to 32VDC
  • Cooling: Heat Sink INCLUDED (requires 120 or 240VAC for included fan)
  • Availability: Usually Ships 6-8 weeks

All-in-one solution for electrical load switching, includes heatsink, fan, over-temperature protection (in some models) and connector block. These solid state relays are configured in one, two or three pole for switching single or three phase resistive and inductive loads. They can be triggered directly by digital controllers with voltage pulse output thus performing very accurate results and significantly reducing power consumption.

  • Currents from 100, 150, 200 and 300 Amp
  • Maximum voltage 480Vac
  • Status LED
  • Internal snubber for dv/dt protection
  • Switching at zero crossing
  • Switching voltage: 4 to 32Vdc
  • High switching speed
  • High noise reduction
  • Requires minimum power for switching
  • Does not generate IEM or IRF
  • Click Here for Installation Manual

Additional information

Weight 168 oz
Dimensions 1 × 1 × 1 in
Phase

Rated Amperage

150 Amps

Input Signal

4-32VDC
