Description

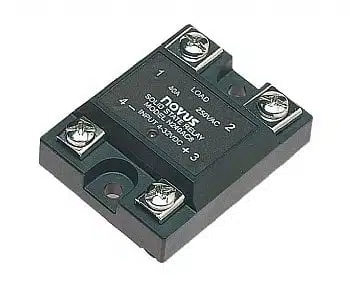

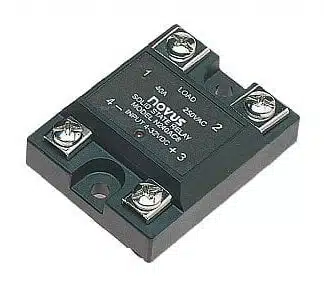

40 amp @ 480VAC (max) solid state relay, 4-32VDC input
- Volts: 480VAC Max (can be operated at anything lower)
- Amps: 40 Amps Max (can be operated at anything lower)
- Firing: Zero Cross
- Load Type: Resistive and Inductive
- Input Signal: Between 4 to 32VDC
- Cooling: Heat Sink Optional
- Availability: Usually Ships SAME DAY
These electronic devices are used for switching resistive and inductive loads and outperform the conventional mechanical relays with great advantages. The life cycle with millions of operations, the high switching speed without mechanical or electrical noise, no dangerous sparks or wearing, and the low power needed for switching make the solid state relays a perfect choice when high control accuracy is fundamental.
- Currents from 10, 25, 40, 60, 100 A
- Maximum voltage 480Vac
- Status LED
- Internal snubber for dv/dt protection
- Switching at zero crossing
- Switching voltage: 4 to 32Vdc
- High switching speed
- High noise reduction
- Requires minimum power for switching
- Does not generate IEM or IRF
- Click Here for Installation Manual
