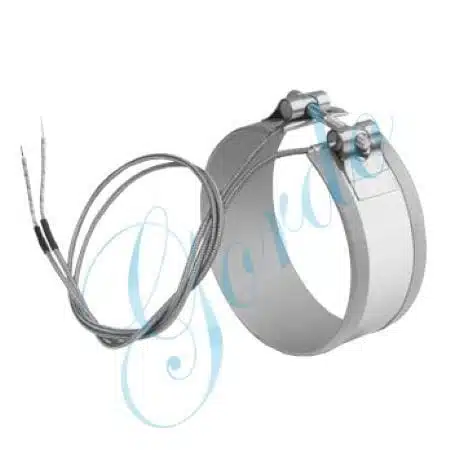

MBH00067 - Band Heater

Original price was: $166.20.Current price is: $123.40.

480V 1250W 4" id x 4" wide mica band with 24" fiberglass leads with SS overbraid

usually ships in 1-2 DAYS

Description

480V 1250W 4" id x 4" wide mica band with 24" fiberglass leads with SS overbraid

  • Watt Density: 27 watts per square inch
  • 24" High Temperature Leads with 22" Stainless Steel Overbraid
  • Designed as one-piece expandable (enables you to open up the heaters to the diameter of the barrel for easy installation)
  • Built in strap (heaters less than 1-1/2" wide have separate straps)
  • Watt Density Guide
A mica core produces a thin, efficient heater. Heat from the precisely wound Nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life. The mica core is encased in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. Maximum sheath temperature is 800F.


Call us if you can not find the exact Mica Band Heater you are looking for (801) 544-4236.

Additional information

Weight 22 oz
Dimensions 1 × 1 × 1 in
Inside Diameter

Availability

Volts Bd
