SLCAB10120BF

$6.20

120V 10 watts/ft tinned copper overbraid with Fluoropolymer Overjacket-price per foot.

Usually Ships SAME DAY!

Description

120V 10 watts/ft tinned copper overbraid with Fluoropolymer Overjacket- price per foot

We cut to length with 20 foot minimum

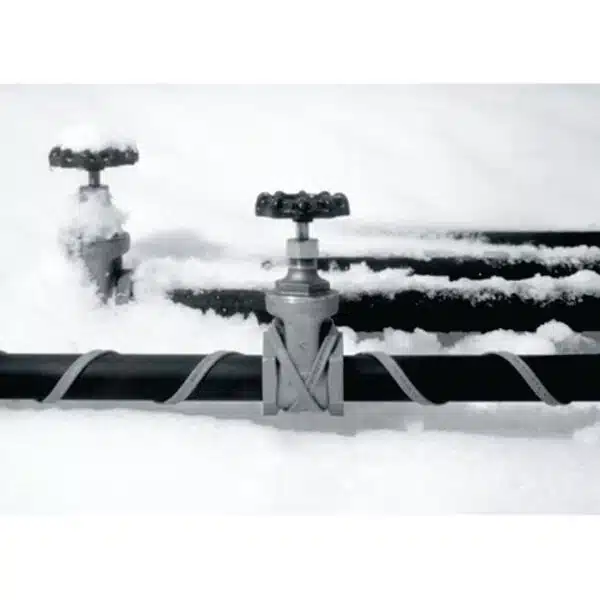

  • Ideal for pipe tracing, freeze protection, and low temperature process maintenance applications up to 150F (66C)
  • Self-limiting: Automatically adjusts heat output based on surface temperature
  • Safe to overlap and insulate
  • Can be cut-to-length and terminated in the field, termination kits required and NOT included
  • No temperature controller is required*
* If a specific process temperature is needed, a temperature controller is required.
Specifications
  • Continuous maintenance temperature: 150F (66C) maximum
  • Intermittent exposure temperature: 185F (85C) maximum; -20F (-29C) minimum
  • 3, 5, 8, or 10 watts/ft (10, 16, 26, or 33 watts/m)
  • Supply voltages: 110 - 120VAC or 208 - 277VAC
  • Moisture, chemical, and flame resistant
  • 16AWG bus wires
  • Braid resistance:
  • Tinned copper: 0.003 ohms/ft (0.009 ohms/m)
  • Stainless steel: 0.125 ohms/ft (0.410 ohms/m)
  • T-Rating**
  • -T6: 3, 5, and 8 watts/ft (10, 16, and 26 watts/m)

-T5: 10 watts/ft (33 watts/m)

** Electrical equipment T-rating codes define the maximum surface temperature that equipment will reach. It is used in hazardous (classified) area applications.




Approvals



FM Approved

CSA Approved

Ordinary Locations Ordinary Locations 2E, 3(A,B,C), 5(A,B)
Hazardous (Classified) Locations Hazardous (Classified) Locations
Class I, Division 2, Groups B, C, D Class I, Division 2, Groups B, C, D
Class II, Division 2, Groups F, G Class II, Division 2, Groups E, F, G
Class III, Division 2 Class III, Division 2



Approvals valid only when used with appropriate heating cable
and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.

*2E approved for 3 watts/ft and 5 watts/ft only





Product Type Description Dimensions Purpose
SLCAB-B Tinned Copper Metal Braid 0.2" x 0.4" (6mm x 11mm) Ordinary applications
SLCAB-BP Tinned Copper Metal Braid with Thermoplastic Elastomer Overjacket 0.3" x 0.6" (7mm x 15mm) For use in weak chemical environments (i.e. weak acids)
SLCAB-BF Tinned Copper Metal Braid with Fluoropolymer Overjacket 0.3" x 0.6" (7mm x 15mm) For use in strong chemical environments (i.e. strong acids)
SLCAB-SS Stainless Steel Metal Braid 0.2" x 0.4" (6mm x 11mm) More resistant to rusting and corrosion than SL-B

Maximum Circuit Length in Feet per Circuit Breaker Size





Start-up Temperature





Heat Cable Type Circuit Breaker Size 50 F (10C) 0F (-20C) -20F (-29C)
SLCAB5120 15 amp
20 amp
30 amp
230 ft
270 ft
-
150 ft
200 ft
270 ft
130 ft
175 ft
260 ft
SLCAB5240 15 amp
20 amp
30 amp
460 ft
540 ft
-
300 ft
400 ft
540 ft
260 ft
345 ft
520 ft
SLCAB8120 15 amp
20 amp
30 amp
40 amp
150 ft
200 ft
210 ft
-
95 ft
125 ft
190 ft
210 ft
85 ft
100 ft
170 ft
210 ft
SLCAB8240 15 amp
20 amp
30 amp
40 amp
295 ft
390 ft
420 ft
-
195 ft
250 ft
375 ft
420 ft
170 ft
225 ft
340 ft
420 ft
SLCAB10120 15 amp
20 amp
30 amp
40 amp
115 ft
150 ft
180 ft
-
70 ft
95 ft
145 ft
180 ft
60 ft
85 ft
120 ft
165 ft
SLCAB10240 15 amp
20 amp
30 amp
40 amp
230 ft
305 ft
360 ft
-
150 ft
200 ft
300 ft
360 ft
130 ft
175 ft
260 ft
360 ft





Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment
Power adjustment Factor
Product Type 208VAC 277 VAC
SLCAB5240 0.75 1.28
SLCAB8240 0.86 1.16
SLCAB10240 0.93 1.08





Additional information

Weight 2 oz
Dimensions 1 × 1 × 1 in
